EX-WiFiShield 8266

NOTE: NOT For the EX-CSB1. This is for a DIY Command Station. The CSB1 has WiFi built-in

TARIFF NOTE: Prices reflect the cost of the new tariffs that we have to pay to receive our goods. If the tariffs are rescinded, we will reduce prices again. In addition, if we can save on any of these new costs on any of our parts, we will refund that difference when we ship your order.

Overview

The new v1.1 WiFi shield is a joint DCC-EX and Makerfabs project. It comes already flashed with DCC-EX EX-CommandStation compatible firmware and can now be easily updated with an Arduino or USB to TTL Adapter.

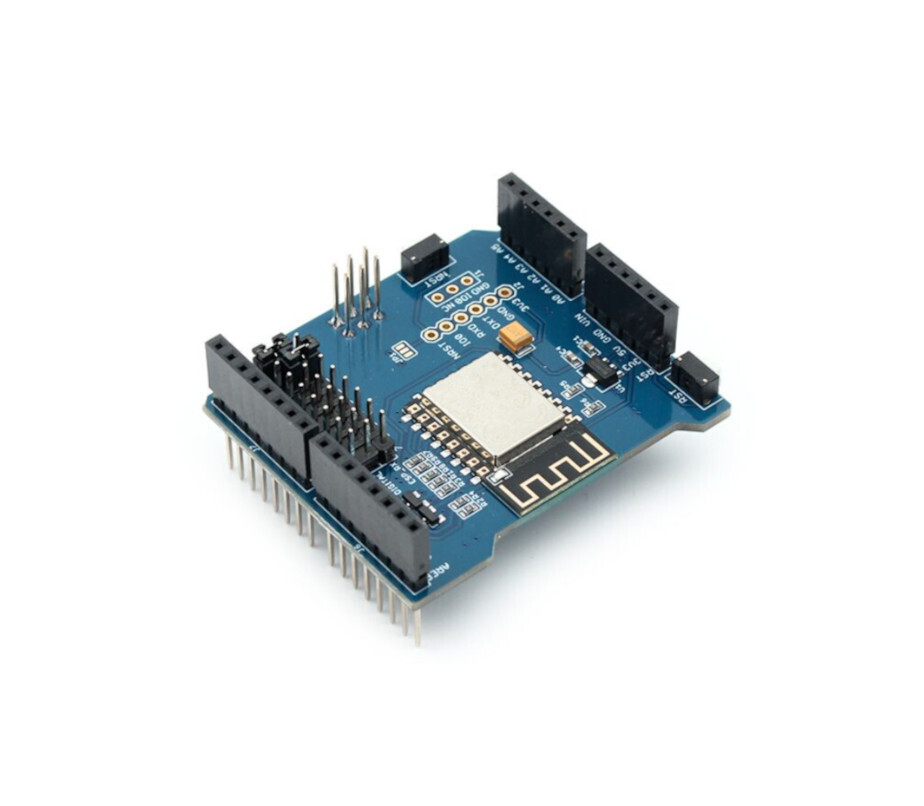

The EX-WiFiShield 8266 is a cost-effective and highly integrated UART-WiFi module for DCC-EX and general IoT applications. It comes in a standard Arduino Uno shield format and uses ULP technology (Ultra Low Power).

This WiFi Shield is based on ESP-12F, which is a newer version of the proven ESP8266 chip. With this Shield, you can connect your Command Station to your network, or have it operate as a stand alone Access Point to connect directly from your phone, tablet, laptop, or WiFi hardware throttle.

Features

supports wireless 2.4GHz 802.11 b/g/n supports the STA/AP/STA + AP operation modes Built-in TCP/IP protocol stack, and support for multiple TCP Client connections supports simple AT commands supports UART/GPIO data communication interface supports Smart Link intelligent networking Dimensions: 2.1"(53mm) * 1.9"(47mm) * .9"(23mm)

Included Items

1x EX-WIFI Shield 8266 2x Female to Male Dupont jumper wires
