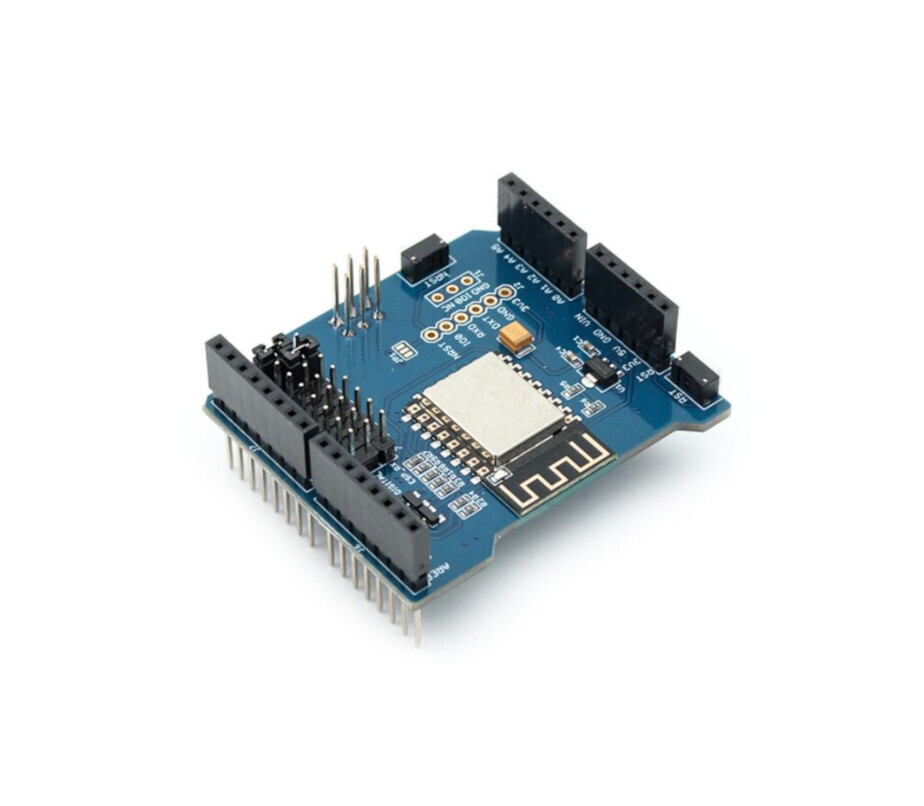

EX-WiFiShield 8266

NOTE: NOT For the EX-CSB1. This is for a DIY Command Station. The CSB1 has WiFi built-in

If you are outside the US, see if one of these resellers are more convenient:

• EU - MRW Electronics in Austria
• UK - Chesterfield
• AU/NZ - Millennium Engineering
• Canada - Narrow Gauge Model Railway Supply Canada (NGMRRSC)
• USA/Canada alternate source - Smart Hobby

Overview

The new v1.1 WiFi shield is a joint DCC-EX and Makerfabs project. It comes already flashed with DCC-EX EX-CommandStation compatible firmware and can now be easily updated with an Arduino or USB to TTL Adapter.

The EX-WiFiShield 8266 is a cost-effective and highly integrated UART-WiFi module for DCC-EX and general IoT applications. It comes in a standard Arduino Uno shield format and uses ULP technology (Ultra Low Power).

This WiFi Shield is based on ESP-12F, which is a newer version of the proven ESP8266 chip. With this Shield, you can connect your Command Station to your network, or have it operate as a stand alone Access Point to connect directly from your phone, tablet, laptop, or WiFi hardware throttle.

Features

supports wireless 2.4GHz 802.11 b/g/n supports the STA/AP/STA + AP operation modes Built-in TCP/IP protocol stack, and support for multiple TCP Client connections supports simple AT commands supports UART/GPIO data communication interface supports Smart Link intelligent networking Dimensions: 2.1"(53mm) * 1.9"(47mm) * .9"(23mm)

Included Items

1x EX-WIFI Shield 8266 2x Female to Male Dupont jumper wires
